Çelik Boru Ölçüleri ve Şema Tablosu — ASME B36.10M

Karbon, paslanmaz ve kaplamalı boru gruplarında dikişsiz ve kaynaklı tedarik.

Kullanım alanları ve seçim notları

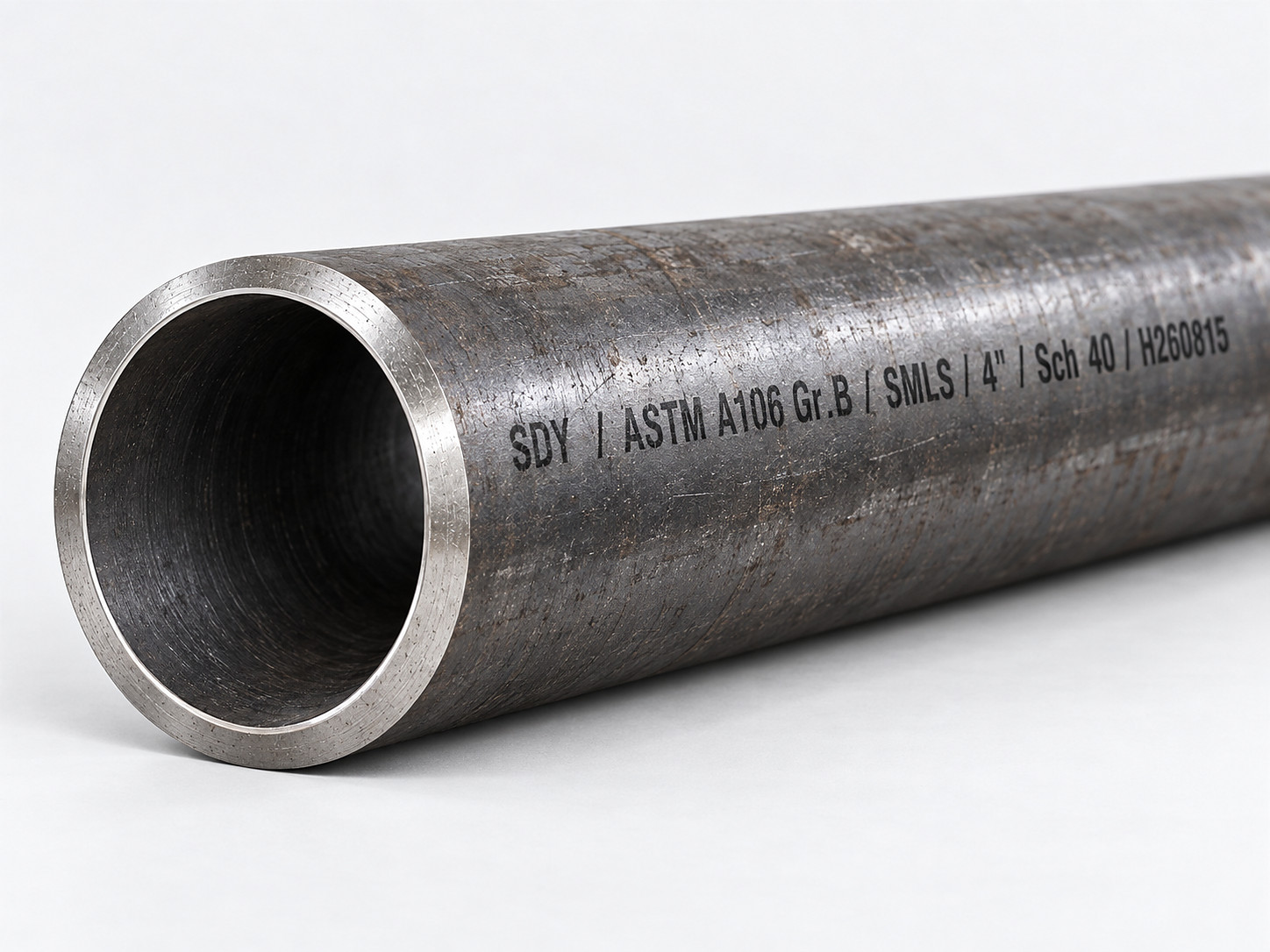

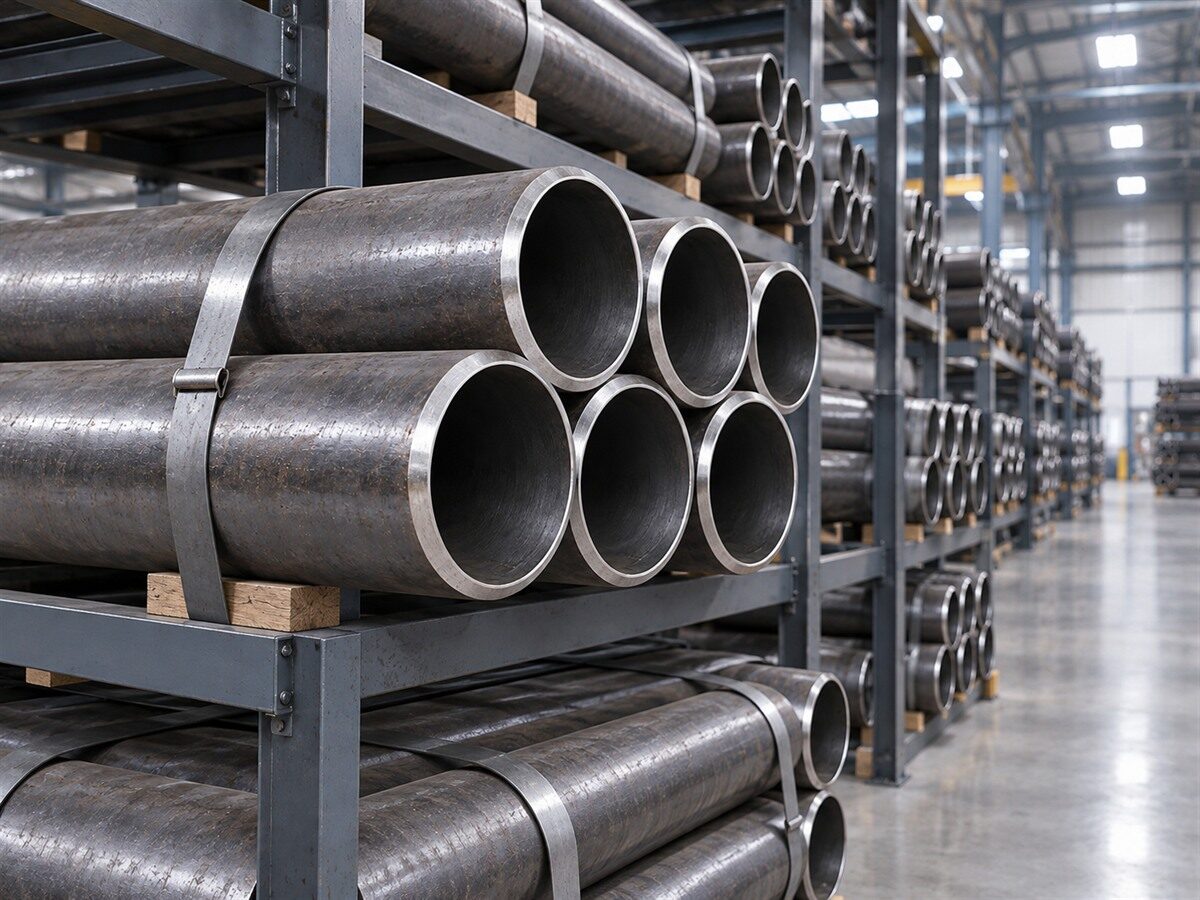

Boru seçimi çapla değil, servis koşuluyla başlar. Akışkanın basıncı ve sıcaklığı et kalınlığını, korozyon davranışı malzeme kalitesini belirler. Proses hatlarında dikişsiz ASTM A106 Gr.B, düşük sıcaklıkta A333, paslanmaz servislerde A312 TP304L/TP316L, iletim hatlarında ise API 5L sınıfları öne çıkar.

Teklif isterken çap, şema (SCH) veya et kalınlığı, malzeme kalitesi, standart, uç formu (düz kesim ya da kaynak ağzı açılmış) ve sertifika sınıfını birlikte belirtin. Şema kararı için SCH 40 ile SCH 80 farkı, üretim yöntemi için dikişsiz mi kaynaklı mı yazılarımıza bakabilirsiniz.

Boru ölçü kütüphanesi: ASME B36.10M, 194 satır.

Ölçü tablolarını aç

Ürün tipleri

Borular (kaynaklı / dikişsiz)
Yapısal borular (kaynaklı)
Kaplamalı borular — polietilen (2 kat, 3 kat), kömür katranı emaye, sıvı epoksi
Tüp borular (kaynaklı / dikişsiz)
Hijyenik borular

Karbon çelik standartları

ASTM A53-B / API 5L-B, X42, X46, X52, X56, X60, X65, X70, X80
API 2H, API 2B, ASTM A515, ASTM A516
ASTM A671, A672 CL22, CL32
API 5L, ASTM A53, ASTM A500

Paslanmaz ve tüp standartları

ASTM A312, ASTM A358 — TP304/L, TP316/L
JIS G3452, G3454, G3444, G3459, G3463, G3447
Tüp: ASTM A179, A192, A210, A334, A178, A214, DIN 11850 (EN 10357)

Üretim aralıkları

Dış çap: 1/2" – 150" (15 mm – 3.810 mm)
Et kalınlığı: maks. 120 mm

Bu ürün grubunda ölçü ve adet listenizi gönderin, fiyat ve termin dönelim.

Teklif iste

Ölçü tabloları

Boru ölçü kütüphanesi

ASME B36.10M kapsamında 1/2" – 24" arası 194 satır. Şemayı seçin veya ölçü arayın; dış çap, et kalınlığı, iç çap ve metre ağırlığı listelenir.

ŞemaNPSDNDış çapmmEt kalınlığımmİç çapmmAğırlıkkg/m

SCH 10	1/2"	DN 15	21.3	2.11	17.08	1.00
SCH 10	3/4"	DN 20	26.7	2.11	22.48	1.28
SCH 10	1"	DN 25	33.4	2.77	27.86	2.09
SCH 10	1 1/4"	DN 32	42.2	2.77	36.66	2.69
SCH 10	1 1/2"	DN 40	48.3	2.77	42.76	3.11
SCH 10	2"	DN 50	60.3	2.77	54.76	3.93
SCH 10	2 1/2"	DN 65	73.0	3.05	66.90	5.26
SCH 10	3"	DN 80	88.9	3.05	82.80	6.46
SCH 10	4"	DN 100	114.3	3.05	108.20	8.37
SCH 10	5"	DN 125	141.3	3.40	134.50	11.56
SCH 10	6"	DN 150	168.3	3.40	161.50	13.83
SCH 10	8"	DN 200	219.1	3.76	211.58	19.97
SCH 10	10"	DN 250	273.0	4.19	264.62	27.77
SCH 10	12"	DN 300	323.8	4.57	314.66	35.98
SCH 10	14"	DN 350	355.6	6.35	342.90	54.69
SCH 10	16"	DN 400	406.4	6.35	393.70	62.64
SCH 10	18"	DN 450	457.2	6.35	444.50	70.60
SCH 10	20"	DN 500	508.0	6.35	495.30	78.55
SCH 10	22"	DN 550	558.8	6.35	546.10	86.51
SCH 10	24"	DN 600	610.0	6.35	597.30	94.53
SCH 20	8"	DN 200	219.1	6.35	206.40	33.31
SCH 20	10"	DN 250	273.0	6.35	260.30	41.75
SCH 20	12"	DN 300	323.8	6.35	311.10	49.71
SCH 20	14"	DN 350	355.6	7.92	339.76	67.90
SCH 20	16"	DN 400	406.4	7.92	390.56	77.83
SCH 20	18"	DN 450	457.2	7.92	441.36	87.75
SCH 20	20"	DN 500	508.0	9.53	488.94	117.15
SCH 20	22"	DN 550	558.8	9.53	539.74	129.08
SCH 20	24"	DN 600	610.0	9.53	590.94	141.12
SCH 30	8"	DN 200	219.1	7.04	205.02	36.81
SCH 30	10"	DN 250	273.0	7.80	257.40	51.01
SCH 30	12"	DN 300	323.8	8.38	307.04	65.18
SCH 30	14"	DN 350	355.6	9.53	336.54	81.33
SCH 30	16"	DN 400	406.4	9.53	387.34	93.27
SCH 30	18"	DN 450	457.2	11.13	434.94	122.43
SCH 30	20"	DN 500	508.0	12.70	482.60	155.12
SCH 30	22"	DN 550	558.8	12.70	533.40	171.03
SCH 30	24"	DN 600	610.0	14.27	581.46	209.64
STD	1/2"	DN 15	21.3	2.77	15.76	1.27
STD	3/4"	DN 20	26.7	2.87	20.96	1.69
STD	1"	DN 25	33.4	3.38	26.64	2.50
STD	1 1/4"	DN 32	42.2	3.56	35.08	3.39
STD	1 1/2"	DN 40	48.3	3.68	40.94	4.05
STD	2"	DN 50	60.3	3.91	52.48	5.44
STD	2 1/2"	DN 65	73.0	5.16	62.68	8.63
STD	3"	DN 80	88.9	5.49	77.92	11.29
STD	3 1/2"	DN 90	101.6	5.74	90.12	13.57
STD	4"	DN 100	114.3	6.02	102.26	16.07
STD	5"	DN 125	141.3	6.55	128.20	21.77
STD	6"	DN 150	168.3	7.11	154.08	28.26
STD	8"	DN 200	219.1	8.18	202.74	42.55
STD	10"	DN 250	273.0	9.27	254.46	60.29
STD	12"	DN 300	323.8	9.53	304.74	73.86
STD	14"	DN 350	355.6	9.53	336.54	81.33
STD	16"	DN 400	406.4	9.53	387.34	93.27
STD	18"	DN 450	457.2	9.53	438.14	105.21
STD	20"	DN 500	508.0	9.53	488.94	117.15
STD	22"	DN 550	558.8	9.53	539.74	129.08
STD	24"	DN 600	610.0	9.53	590.94	141.12
SCH 40	1/2"	DN 15	21.3	2.77	15.76	1.27
SCH 40	3/4"	DN 20	26.7	2.87	20.96	1.69
SCH 40	1"	DN 25	33.4	3.38	26.64	2.50
SCH 40	1 1/4"	DN 32	42.2	3.56	35.08	3.39
SCH 40	1 1/2"	DN 40	48.3	3.68	40.94	4.05
SCH 40	2"	DN 50	60.3	3.91	52.48	5.44
SCH 40	2 1/2"	DN 65	73.0	5.16	62.68	8.63
SCH 40	3"	DN 80	88.9	5.49	77.92	11.29
SCH 40	3 1/2"	DN 90	101.6	5.74	90.12	13.57
SCH 40	4"	DN 100	114.3	6.02	102.26	16.07
SCH 40	5"	DN 125	141.3	6.55	128.20	21.77
SCH 40	6"	DN 150	168.3	7.11	154.08	28.26
SCH 40	8"	DN 200	219.1	8.18	202.74	42.55
SCH 40	10"	DN 250	273.0	9.27	254.46	60.29
SCH 40	12"	DN 300	323.8	10.31	303.18	79.70
SCH 40	14"	DN 350	355.6	11.13	333.34	94.55
SCH 40	16"	DN 400	406.4	12.70	381.00	123.30
SCH 40	18"	DN 450	457.2	14.27	428.66	155.87
SCH 40	20"	DN 500	508.0	15.09	477.82	183.42
SCH 40	24"	DN 600	610.0	17.48	575.04	255.41
SCH 60	8"	DN 200	219.1	10.31	198.48	53.08
SCH 60	10"	DN 250	273.0	12.70	247.60	81.52
SCH 60	12"	DN 300	323.8	14.27	295.26	108.92
SCH 60	14"	DN 350	355.6	15.09	325.42	126.71
SCH 60	16"	DN 400	406.4	16.66	373.08	160.12
SCH 60	18"	DN 450	457.2	19.05	419.10	205.83
SCH 60	20"	DN 500	508.0	20.62	466.76	247.83
SCH 60	22"	DN 550	558.8	22.23	514.34	294.14
SCH 60	24"	DN 600	610.0	24.61	560.78	355.26
XS	1/2"	DN 15	21.3	3.73	13.84	1.62
XS	3/4"	DN 20	26.7	3.91	18.88	2.20
XS	1"	DN 25	33.4	4.55	24.30	3.24
XS	1 1/4"	DN 32	42.2	4.85	32.50	4.47
XS	1 1/2"	DN 40	48.3	5.08	38.14	5.41
XS	2"	DN 50	60.3	5.54	49.22	7.48
XS	2 1/2"	DN 65	73.0	7.01	58.98	11.41
XS	3"	DN 80	88.9	7.62	73.66	15.27
XS	3 1/2"	DN 90	101.6	8.08	85.44	18.63
XS	4"	DN 100	114.3	8.56	97.18	22.32
XS	5"	DN 125	141.3	9.53	122.24	30.97
XS	6"	DN 150	168.3	10.97	146.36	42.56
XS	8"	DN 200	219.1	12.70	193.70	64.64
XS	10"	DN 250	273.0	12.70	247.60	81.52
XS	12"	DN 300	323.8	12.70	298.40	97.43
XS	14"	DN 350	355.6	12.70	330.20	107.39
XS	16"	DN 400	406.4	12.70	381.00	123.30
XS	18"	DN 450	457.2	12.70	431.80	139.21
XS	20"	DN 500	508.0	12.70	482.60	155.12
XS	22"	DN 550	558.8	12.70	533.40	171.03
XS	24"	DN 600	610.0	12.70	584.60	187.06
SCH 80	1/2"	DN 15	21.3	3.73	13.84	1.62
SCH 80	3/4"	DN 20	26.7	3.91	18.88	2.20
SCH 80	1"	DN 25	33.4	4.55	24.30	3.24
SCH 80	1 1/4"	DN 32	42.2	4.85	32.50	4.47
SCH 80	1 1/2"	DN 40	48.3	5.08	38.14	5.41
SCH 80	2"	DN 50	60.3	5.54	49.22	7.48
SCH 80	2 1/2"	DN 65	73.0	7.01	58.98	11.41
SCH 80	3"	DN 80	88.9	7.62	73.66	15.27
SCH 80	3 1/2"	DN 90	101.6	8.08	85.44	18.63
SCH 80	4"	DN 100	114.3	8.56	97.18	22.32
SCH 80	5"	DN 125	141.3	9.53	122.24	30.97
SCH 80	6"	DN 150	168.3	10.97	146.36	42.56
SCH 80	8"	DN 200	219.1	12.70	193.70	64.64
SCH 80	10"	DN 250	273.0	15.09	242.82	95.97
SCH 80	12"	DN 300	323.8	17.48	288.84	132.04
SCH 80	14"	DN 350	355.6	19.05	317.50	158.10
SCH 80	16"	DN 400	406.4	21.44	363.52	203.53
SCH 80	18"	DN 450	457.2	23.83	409.54	254.67
SCH 80	20"	DN 500	508.0	26.19	455.62	311.17
SCH 80	22"	DN 550	558.8	28.58	501.64	373.69
SCH 80	24"	DN 600	610.0	30.96	548.08	442.08
SCH 100	8"	DN 200	219.1	15.09	188.92	75.92
SCH 100	10"	DN 250	273.0	18.26	236.48	114.71
SCH 100	12"	DN 300	323.8	21.44	280.92	159.86
SCH 100	14"	DN 350	355.6	23.83	307.94	194.96
SCH 100	16"	DN 400	406.4	26.19	354.02	245.56
SCH 100	18"	DN 450	457.2	29.36	398.48	309.76
SCH 100	20"	DN 500	508.0	32.54	442.92	381.53
SCH 100	22"	DN 550	558.8	34.93	488.94	451.25
SCH 100	24"	DN 600	610.0	38.89	532.22	547.71
SCH 120	4"	DN 100	114.3	11.13	92.04	28.32
SCH 120	5"	DN 125	141.3	12.70	115.90	40.28
SCH 120	6"	DN 150	168.3	14.27	139.76	54.20
SCH 120	8"	DN 200	219.1	18.26	182.58	90.44
SCH 120	10"	DN 250	273.0	21.44	230.12	133.00
SCH 120	12"	DN 300	323.8	25.40	273.00	186.91
SCH 120	14"	DN 350	355.6	27.79	300.02	224.65
SCH 120	16"	DN 400	406.4	30.96	344.48	286.64
SCH 120	18"	DN 450	457.2	34.93	387.34	363.73
SCH 120	20"	DN 500	508.0	38.10	431.80	441.49
SCH 120	22"	DN 550	558.8	41.28	476.24	526.82
SCH 120	24"	DN 600	610.0	46.02	517.96	640.03
SCH 140	8"	DN 200	219.1	20.62	177.86	100.92
SCH 140	10"	DN 250	273.0	25.40	222.20	155.09
SCH 140	12"	DN 300	323.8	28.58	266.64	208.07
SCH 140	14"	DN 350	355.6	31.75	292.10	253.56
SCH 140	16"	DN 400	406.4	36.53	333.34	333.19
SCH 140	18"	DN 450	457.2	39.67	377.86	408.45
SCH 140	20"	DN 500	508.0	44.45	419.10	508.11
SCH 140	22"	DN 550	558.8	47.63	463.54	600.40
SCH 140	24"	DN 600	610.0	52.37	505.26	720.15
SCH 160	1/2"	DN 15	21.3	4.78	11.74	1.95
SCH 160	3/4"	DN 20	26.7	5.56	15.58	2.90
SCH 160	1"	DN 25	33.4	6.35	20.70	4.24
SCH 160	1 1/4"	DN 32	42.2	6.35	29.50	5.61
SCH 160	1 1/2"	DN 40	48.3	7.14	34.02	7.25
SCH 160	2"	DN 50	60.3	8.74	42.82	11.11
SCH 160	2 1/2"	DN 65	73.0	9.53	53.94	14.92
SCH 160	3"	DN 80	88.9	11.13	66.64	21.35
SCH 160	4"	DN 100	114.3	13.49	87.32	33.54
SCH 160	5"	DN 125	141.3	15.88	109.54	49.11
SCH 160	6"	DN 150	168.3	18.26	131.78	67.56
SCH 160	8"	DN 200	219.1	23.01	173.08	111.27
SCH 160	10"	DN 250	273.0	28.58	215.84	172.26
SCH 160	12"	DN 300	323.8	33.32	257.16	238.68
SCH 160	14"	DN 350	355.6	35.71	284.18	281.70
SCH 160	16"	DN 400	406.4	40.49	325.42	365.36
SCH 160	18"	DN 450	457.2	45.24	366.72	459.59
SCH 160	20"	DN 500	508.0	50.01	407.98	564.81
SCH 160	22"	DN 550	558.8	53.98	450.84	671.99
SCH 160	24"	DN 600	610.0	59.54	490.92	808.22
XXS	1/2"	DN 15	21.3	7.47	6.36	2.55
XXS	3/4"	DN 20	26.7	7.82	11.06	3.64
XXS	1"	DN 25	33.4	9.09	15.22	5.45
XXS	1 1/4"	DN 32	42.2	9.70	22.80	7.77
XXS	1 1/2"	DN 40	48.3	10.15	28.00	9.55
XXS	2"	DN 50	60.3	11.07	38.16	13.44
XXS	2 1/2"	DN 65	73.0	14.02	44.96	20.39
XXS	3"	DN 80	88.9	15.24	58.42	27.68
XXS	4"	DN 100	114.3	17.12	80.06	41.03
XXS	5"	DN 125	141.3	19.05	103.20	57.43
XXS	6"	DN 150	168.3	21.95	124.40	79.22
XXS	8"	DN 200	219.1	22.23	174.64	107.92
XXS	10"	DN 250	273.0	25.40	222.20	155.09
XXS	12"	DN 300	323.8	25.40	273.00	186.91

Aramanıza uyan ölçü yok.

Ağırlıklar karbon çelik için hesaplanmıştır (0,02466 × t × (D − t)). Paslanmaz ve alaşımlı kalitelerde yoğunluk farkını dikkate alın.
